Module 3 · Testing Equipment & Safety
Module 3: Testing Equipment and Safety
Module 3 covers the tools and safety needed to test the solar system.
Module 3 · Testing Equipment & Safety

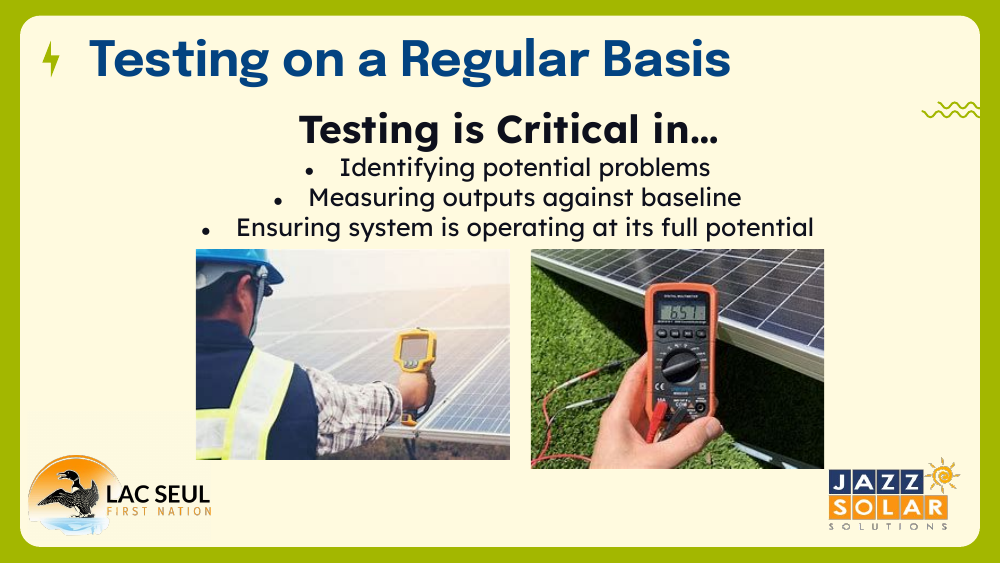

Testing on a Regular Basis
Testing helps you find problems early and confirm the system runs at full potential.
Module 3 · Testing Equipment & Safety

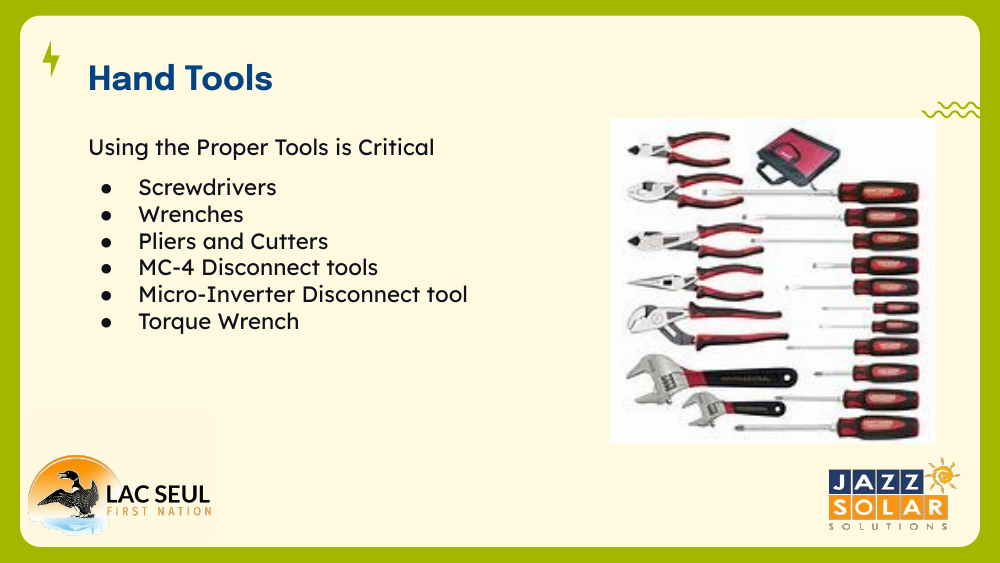

Hand Tools
Using the proper tools for the job is critical.
Module 3 · Testing Equipment & Safety

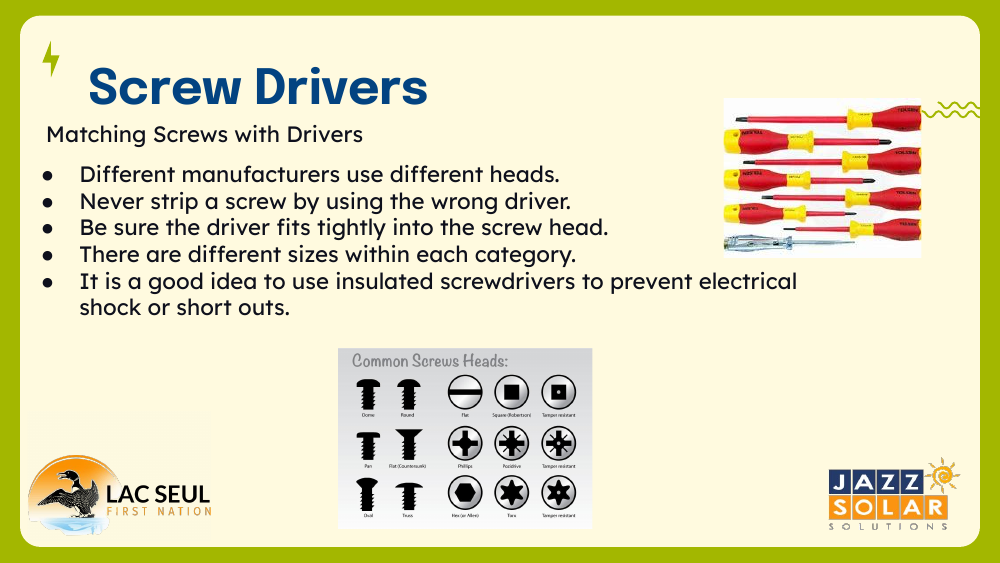

Screw Drivers
Use insulated screwdrivers to help prevent electric shock or short outs.
Module 3 · Testing Equipment & Safety

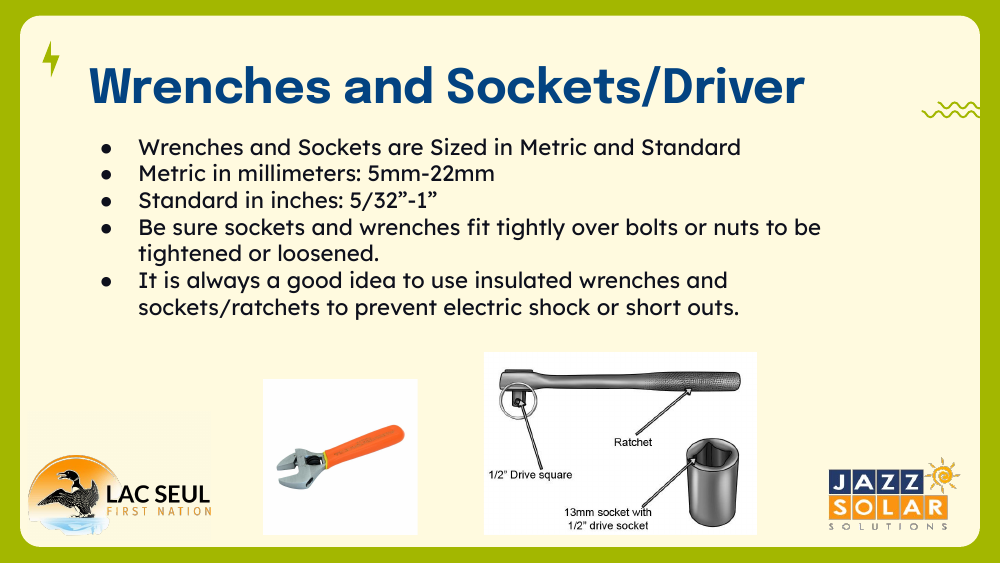

Wrenches and Sockets / Driver
Use insulated wrenches and sockets to help prevent electric shock or short outs.
Module 3 · Testing Equipment & Safety

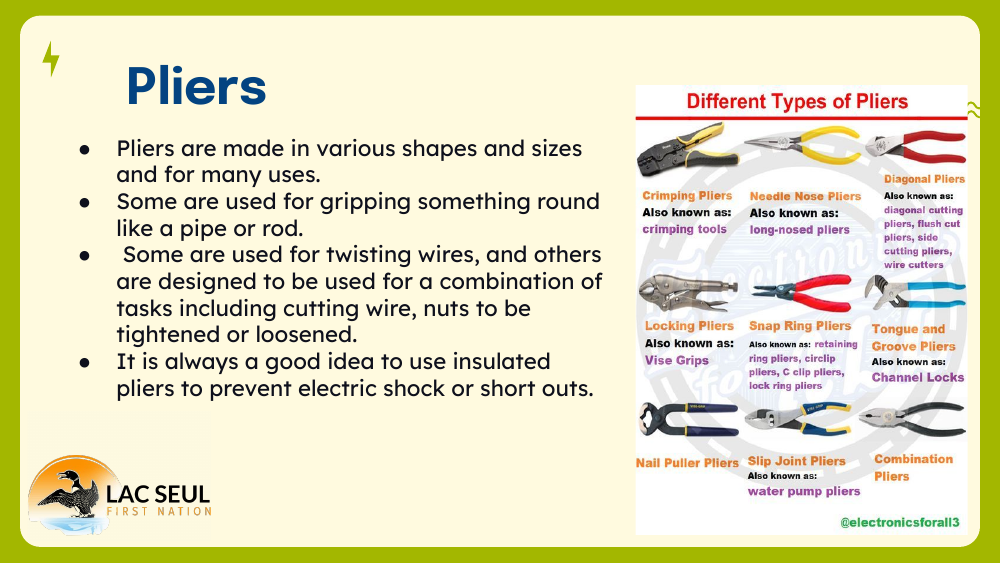

Pliers
Use insulated pliers to help prevent electric shock or short outs.
Module 3 · Testing Equipment & Safety

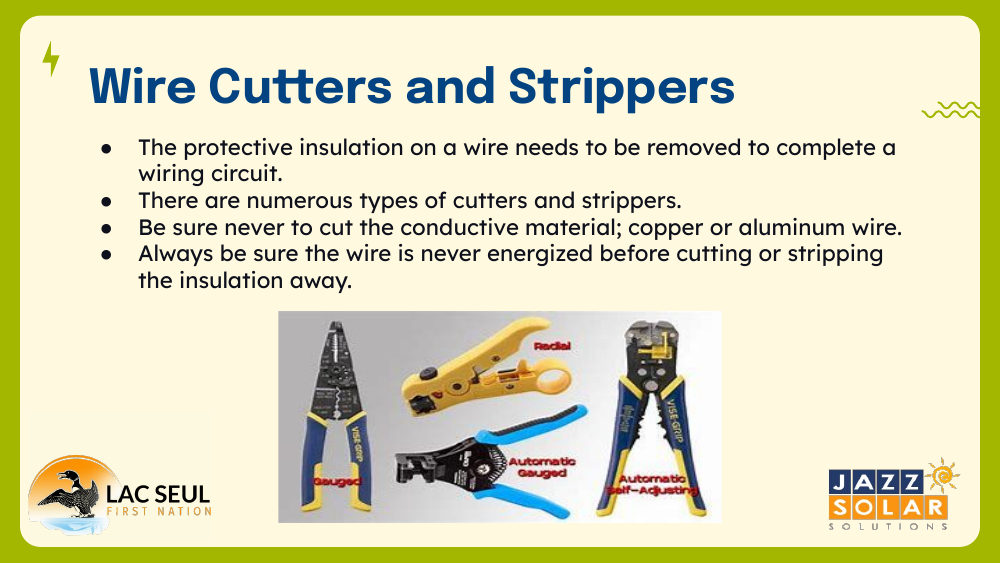

Wire Cutters and Strippers
Always make sure the wire is never energized before cutting or stripping.
Module 3 · Testing Equipment & Safety

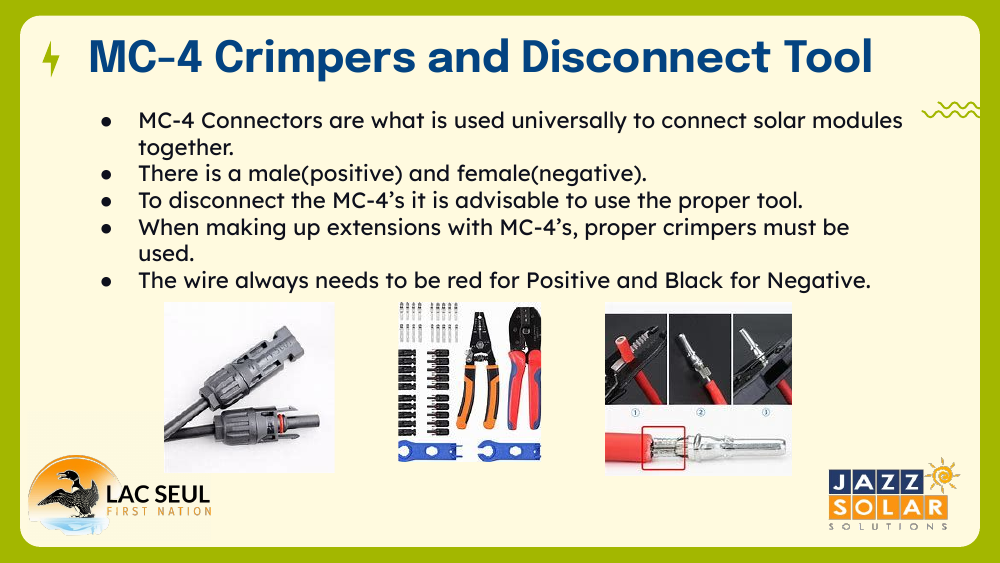

MC-4 Crimpers and Disconnect Tool
Wire color: red for positive, black for negative.
Module 3 · Testing Equipment & Safety

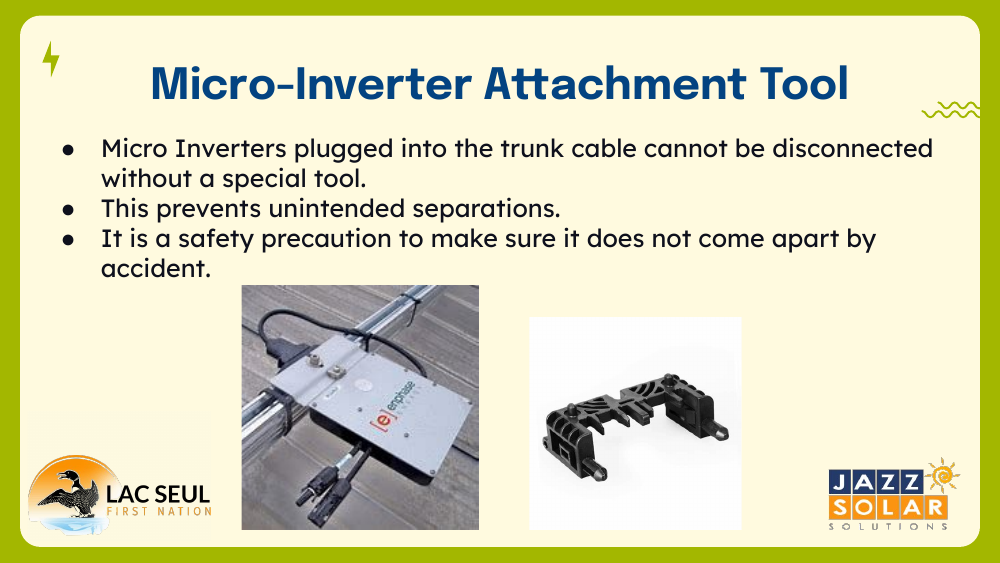

Micro-Inverter Attachment Tool
This prevents unintended separations coming apart by accident.
Module 3 · Testing Equipment & Safety

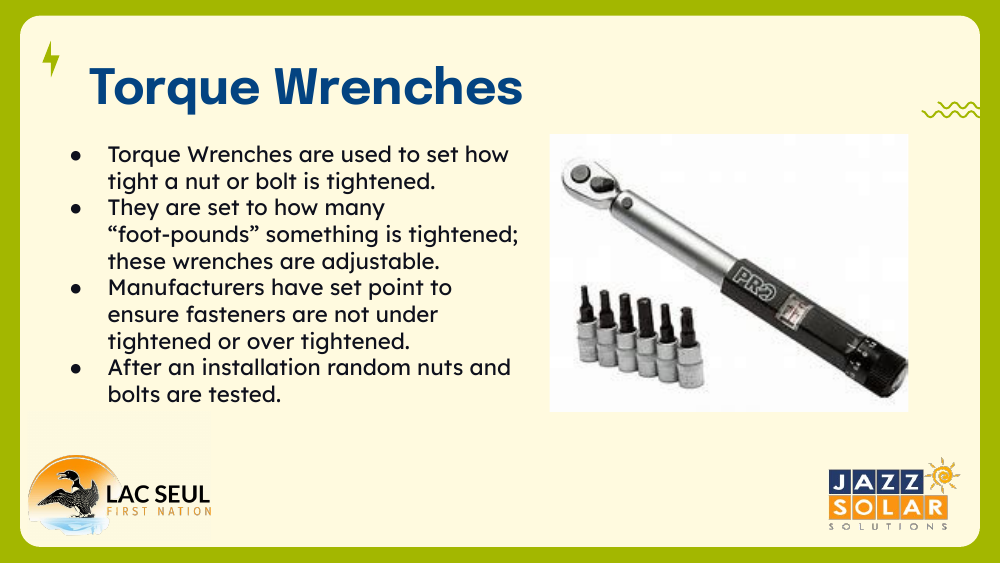

Torque Wrenches
Set to the maker's point so fasteners are not under- or over-tightened.
Module 3 · Testing Equipment & Safety

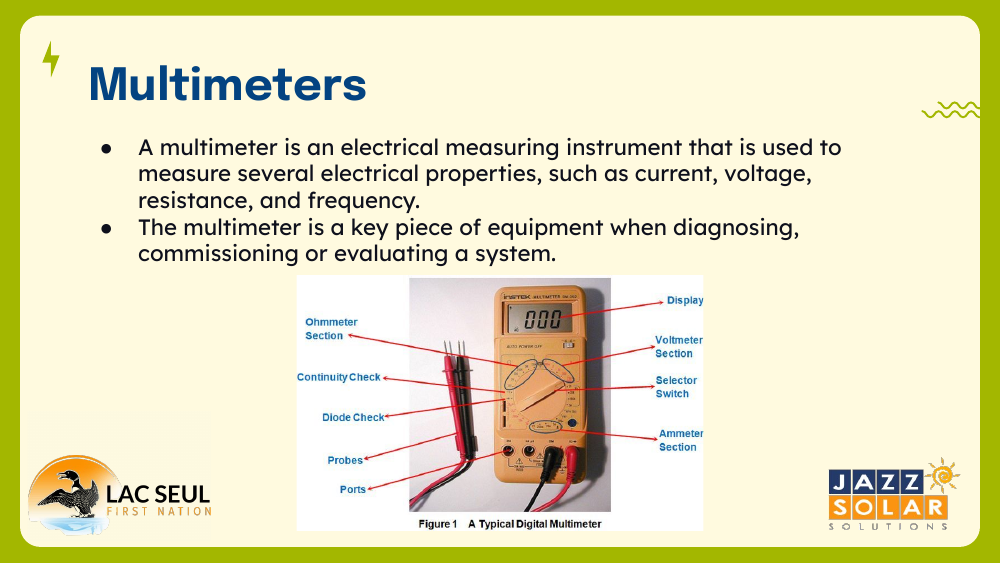

Multimeters
Key tool when diagnosing, commissioning, or evaluating a system.
Module 3 · Testing Equipment & Safety

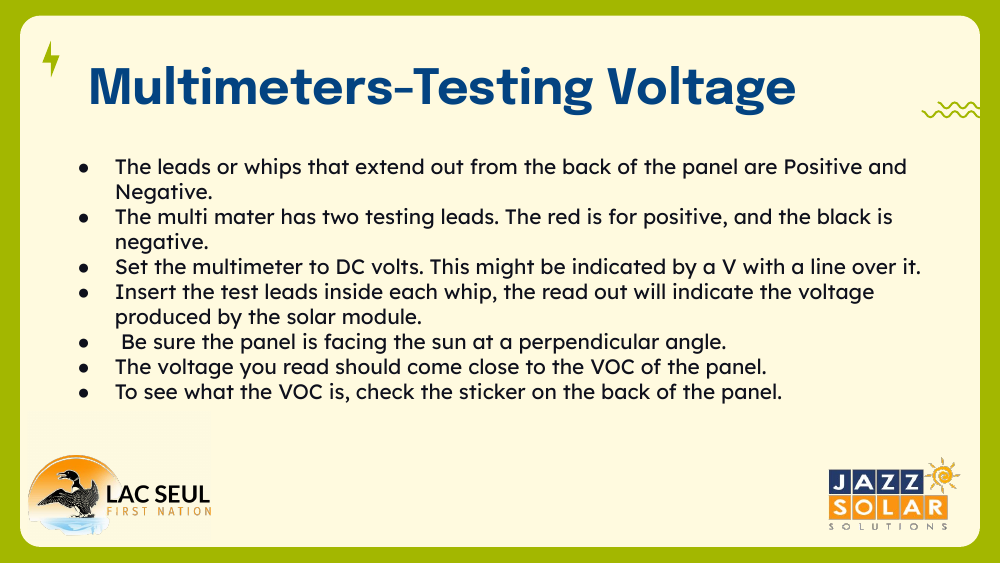

Multimeters - Testing Voltage
Face the panel perpendicular to the sun; check VOC on the back sticker.
Module 3 · Testing Equipment & Safety

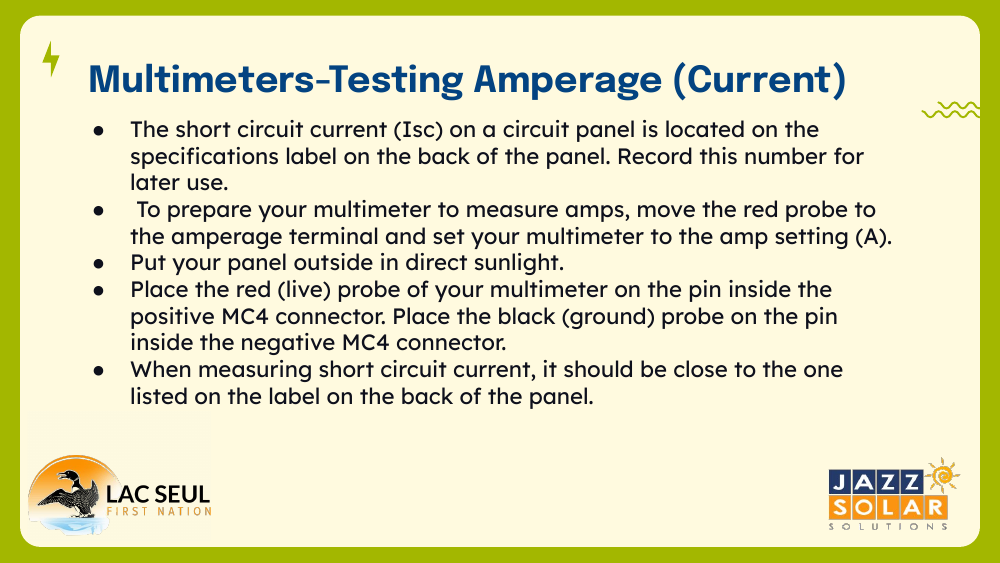

Multimeters - Testing Amperage (Current)
Set the meter to amps and test in direct sunlight - the reading should be close to the Isc on the panel label.
Module 3 · Testing Equipment & Safety

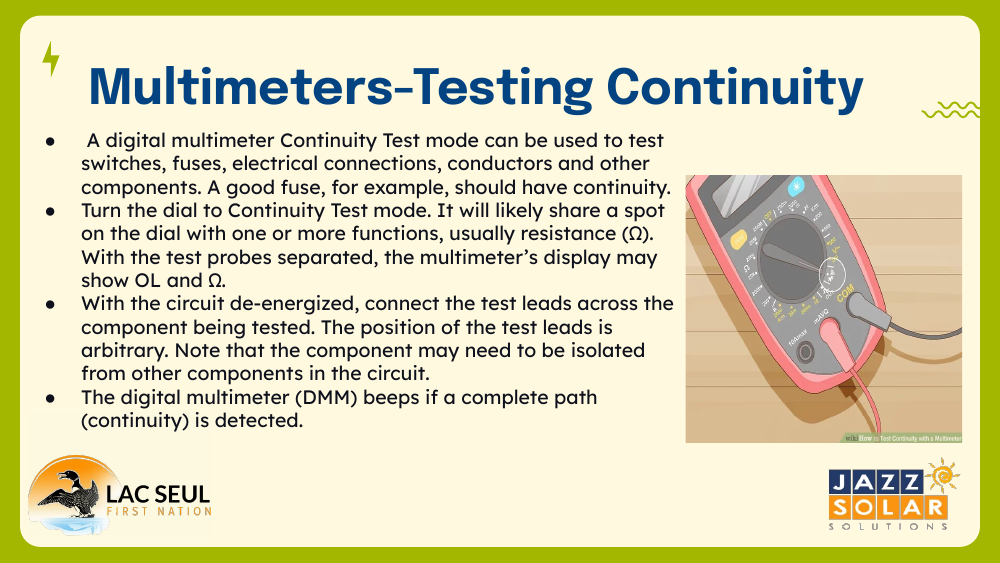

Multimeters - Testing Continuity
A beep means a complete circuit - no beep means a break in the wire or connection.
Module 3 · Testing Equipment & Safety

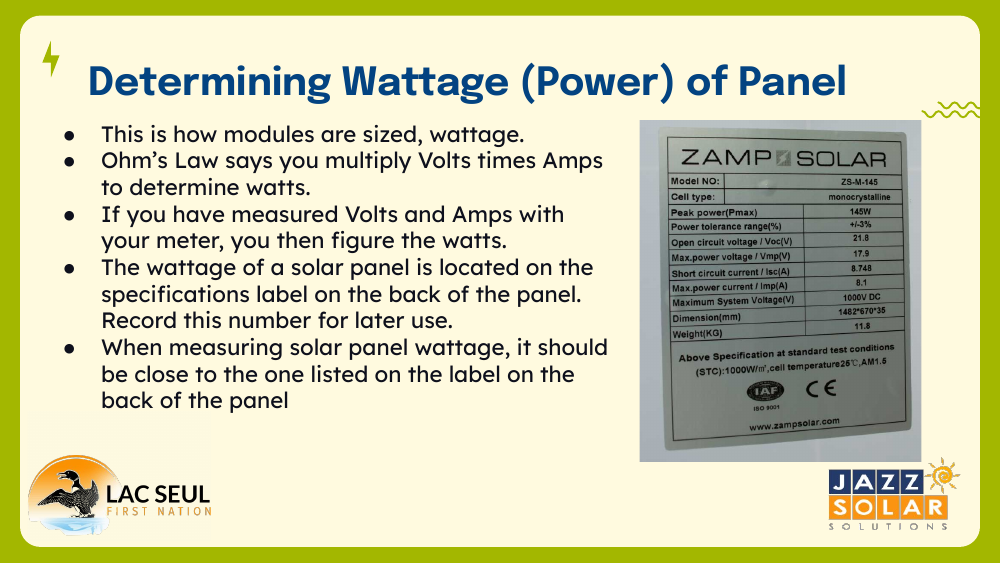

Determining Wattage (Power) of a Panel
Watts = Volts x Amps - your measured wattage should be close to the value on the back label.
Module 3 · Testing Equipment & Safety

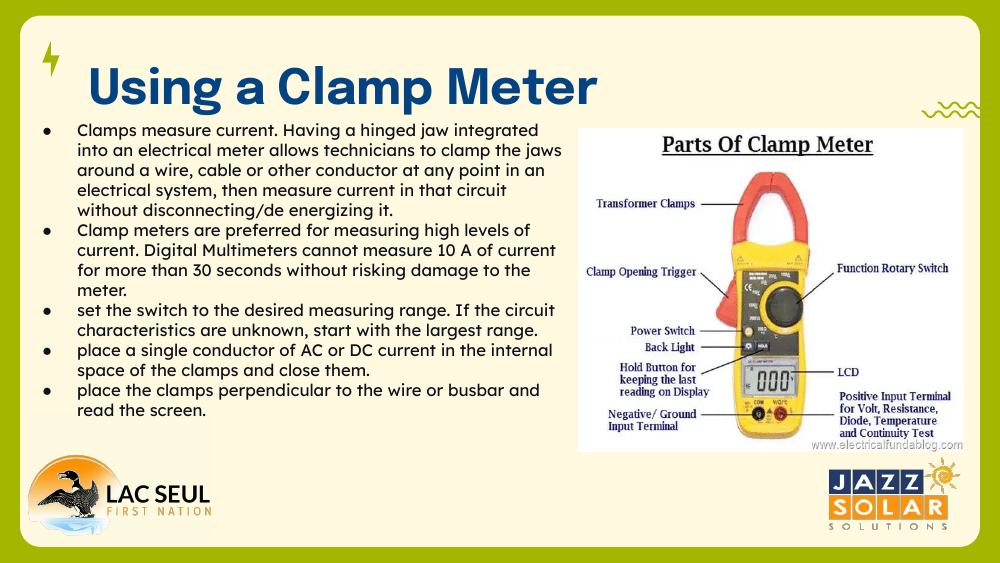

Using a Clamp Meter
Clamp around a single conductor and start at the largest range if the circuit values are unknown.
Module 3 · Testing Equipment & Safety

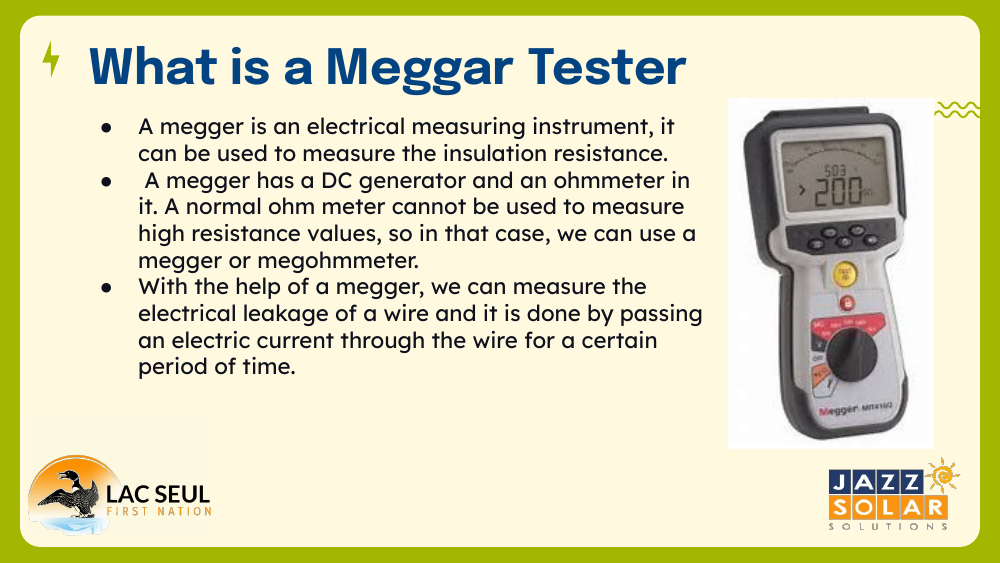

What is a Megger Tester
Use a megger to check insulation resistance and electrical leakage in a wire.
Module 3 · Testing Equipment & Safety

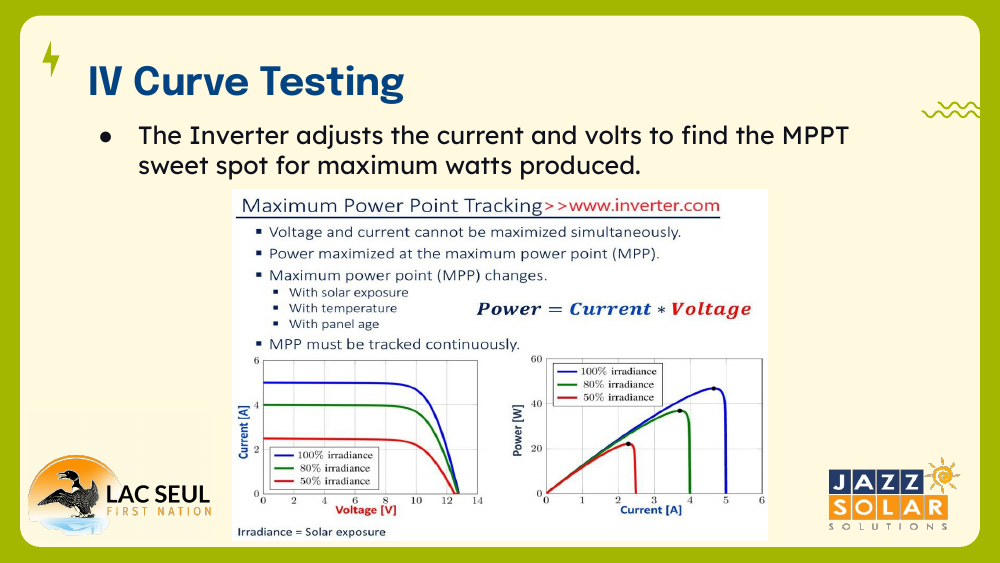

IV Curve Testing
Power = Current x Voltage - the MPP shifts with sun, temperature and panel age, so it must be tracked continuously.
Module 3 · Testing Equipment & Safety

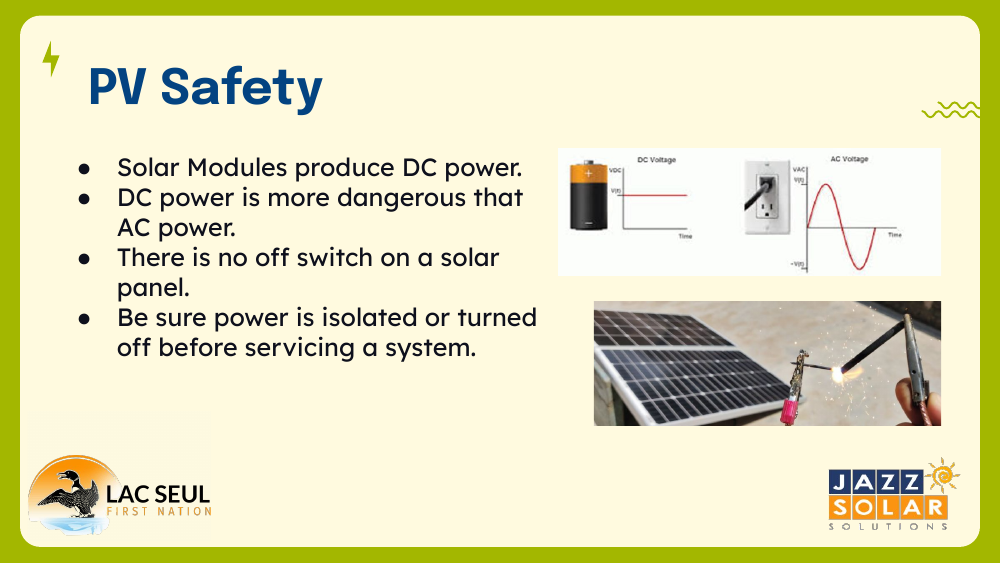

PV Safety
Make sure power is isolated or turned off before servicing a system.
Module 3 · Testing Equipment & Safety

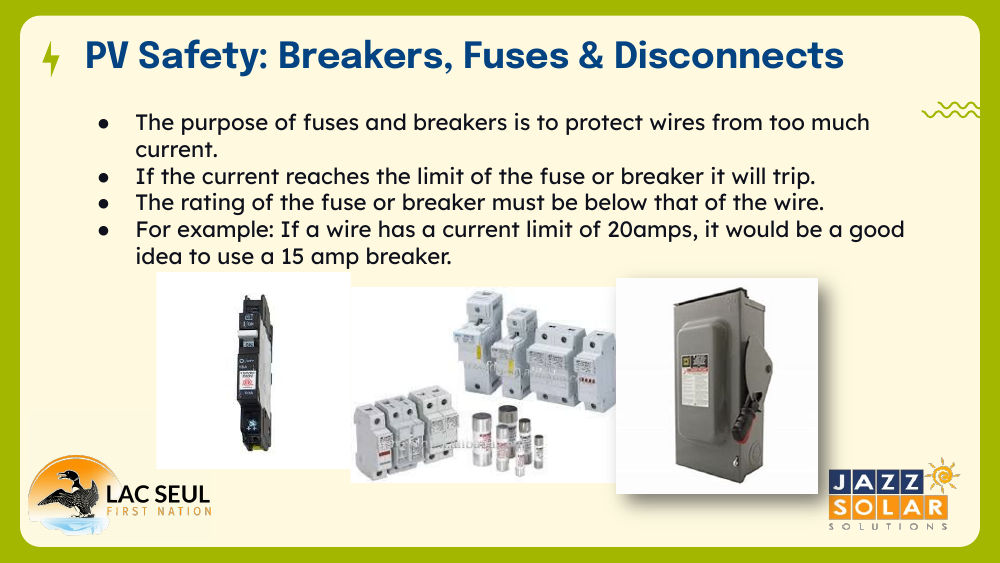

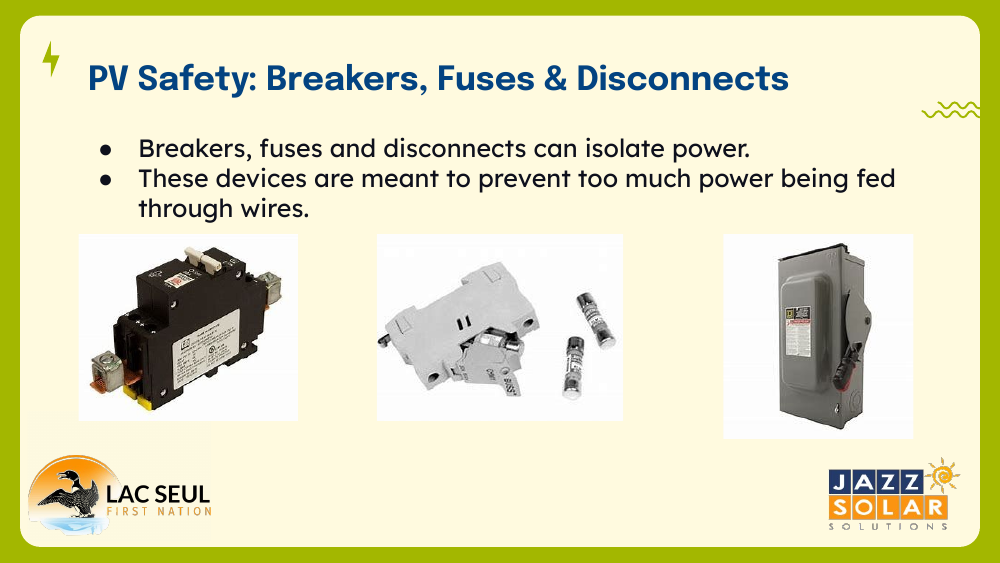

Breakers, Fuses & Disconnects
Rate the fuse or breaker below the wire (e.g. a 20 amp wire uses a 15 amp breaker).
Module 3 · Testing Equipment & Safety
Devices That Isolate Power
These devices stop too much power from being fed through the wires.
Module 3 · Testing Equipment & Safety

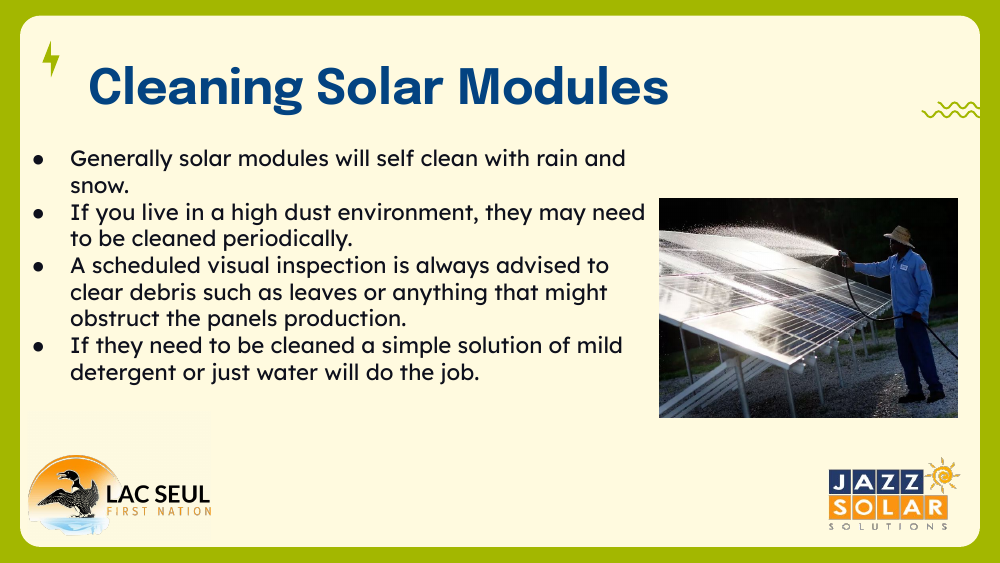

Cleaning Solar Modules
Inspect for debris and clean with mild detergent or plain water.
Module 3 · Testing Equipment & Safety
Thanks
Thanks! Questions? Email asenia@jazzsolar.com or jon@jazzsolar.com.
